Update: 2012-08-12 03:44 PM +0630

TIL

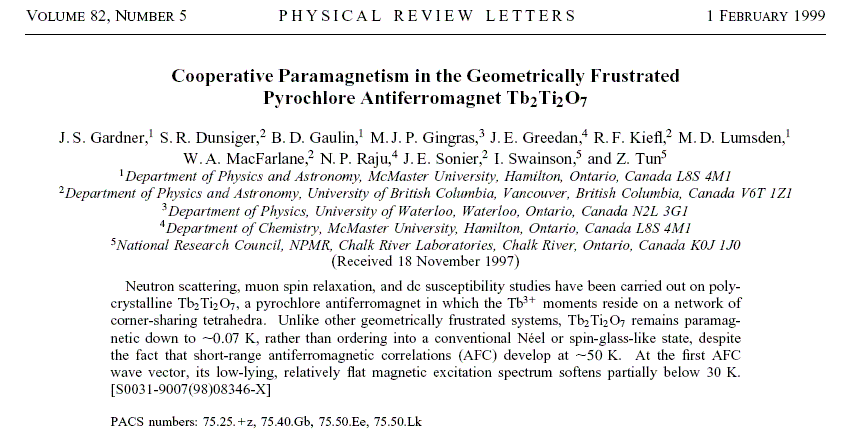

Cooperative Paramagnetism in the Goemetrically Frustrated Pyrochlore Antiferromaget Tb2Ti2O7

Gardner1999.htm

J. S. Gardner, S.R. Dunsiger, B.D. Gaulin, M.J.P. Gingras, J.E. Greedan, R.F. Kiefl, M.D. Lumsden, W.A. MacFarlane, N.P. Raju, J.E. Sonier, I. Swainson, and Z. Tun
Physical Review Letters, Vol. 82 No. 5, 1 February 1999

home-ZinTun.htm  | Top
 indx-zin-publ.htm

Contents of this page

Journal
Abstract
Introduction
Notes by Dr. Zin Tun

Contents of this page

The Journal
Abstract

Contents of this page

Introduction

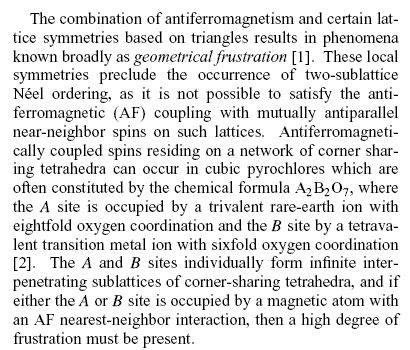

   The combination of antiferromagnetism and certain lattice symmetries based on triangles results in phenomena known broadly as geometrical frustration [1]. These local symmetries preclude the occurrence of two-sublattice Nel ordering, as it is not possible to satisfy the antiferromagnetic (AF) coupling with mutually antiparralel near-neighbor spins on such lattices. Antiferromagnetically coupled spins residing on a network of corner sharing tetrahedra can occur in cubic pyrochlores which are often constituted by the chemical formula A2B2O7, where the A site is occupied by a trivalent rare-earth ion with eightfold oxygen coordination and the B site by a tetravalent transition metal ion with sixfold oxygen coordination [2]. The A and B sites individually form infinite interpenetrating sublattices of corner-sharing tetrahedra, and if either the A or B site is occupied by a magnetic atom with an AF nearest-neighbor interaction, then a high degree of frustration must be present. (Gardner1999intro01.gif)

   Theoretical arguments have been made which lead to large ground state dengeneracies for both discrete [3] and continuous spin symmetries [4,5] on the pyrochlore lattice. For near-neighbor AF interactions, long-range order is suppressed, with incoherent, local ordering of the spin configurations on a tetrahedron subject to the constraint , where the sum is over those spins on a single tetrahedra. Villain [5] coined the term "cooperative paramagnetism" to describe such a state at low temperatures. (Gardner1999intro02.gif)

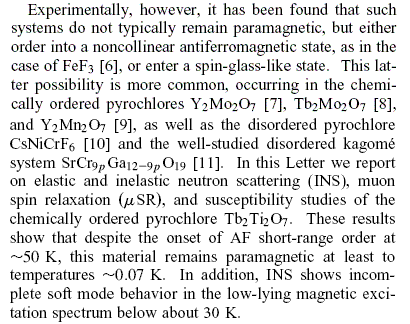

   Experimentally, however, it has been found that such systems do not typically remain paramagnetic, but either order into a noncollinear antiferromagnetic state, as in the case of FeFe3 [6], or enter a spin-glass-like state. This latter possibility is more common, occurring in the chemically ordered pyrochlores Y2Mo2O7 [7], Tb2Mo2O7 [8], and Y2Mn2O7 [9], as well as the disordered pyrochlore CsNiCrF6 [10] and the well-studied disordered kagom system SrCr9pGa12-9pO19 [11]. In this Letter we report on elastic and inelastic neutron scattering (INS), muon spin relaxation (SR), and susceptibility studies of the chemically ordered pyrochlore Tb2Ti2O7. These results show that despite the onset of AF short-range order at ~50 K, this material remains paramagnetic at least to temperatures ~0.07 K. In addition, INS shows incomplete soft mode behavior in the low-lying magnetic excitation spectrum below about 30 K. (Gardner1999intro03.gif)

    Other related low temperature states have recently been studied in the pyrochlore rare-earth titanates. Counter-intuitively, ferromagnetic exchange and strong anisotropy lead to a geometrically frustrated state referred to as "spin-ice" in Ho2Ti2O7 [12]. A nonmagnetic (i.e., singlet) ground state is also possible, and has been shown to exist in Tm2Ti2O7 [13]. (Gardner1999intro04.gif)

    Tb2Ti2O7 is an insulator which crystallizes in the cubic, face centered space group Fd3m with lattice parameter a = 10.15(1) at 300 K, and only the Tb3+ ions on the A site possess a magnetic moment. Polycrystalline sample of Tb2Ti2O7 were prepared by firing, in air at 1350C, stoichiometric amounts of Tb2O3 and TiO2 for several days with intermittent grindings to ensure a complete reaction. (Gardner 1999intro05.gif)

 There are more in the introduction.
